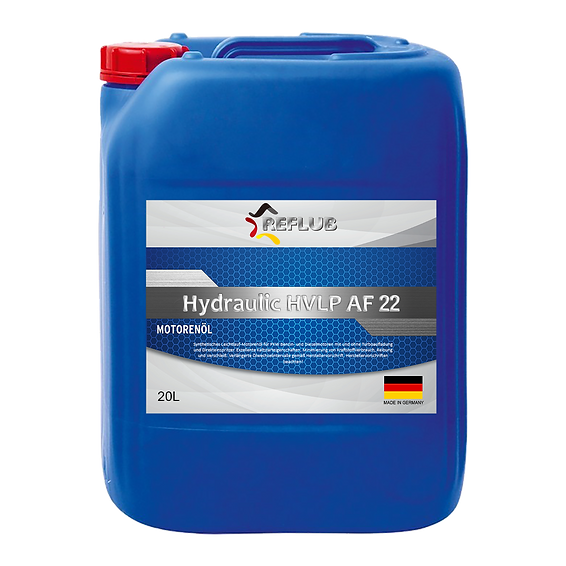

Hydraulic HVLP AF 22

Product ID:


FS Low SAPS 0W-40

Product  Description:

REFLUB Hydraulic HVLP AF 22 is an ash- and zinc-free multi-grade hydraulic oil. REFLUB Hydraulic HLVP AF 22 offers a high wear protection, even under extreme loads, thanks to effective additives. REFLUB Hydraulic HLVP AF 22 is characterized especially by a very good viscosity and temperature behavior and reliable corrosion protection.

Instruction For Use:

REFLUB Hydraulic HVLP AF 22 can be used primarily in hydraulic systems with heavily fluctuating operating temperatures. REFLUB Hydraulic HVLP AF 22 is ideal for heavy-loaded hydraulic systems, earth-moving machines and agricultural machinery. It is favored at heavily fluctuating operating temperatures and may not be used in hydraulic systems which contain silver or silver-plated construction and operating elements.

Product Properties:

REFLUB Hydraulic HVLP AF 22 offers:

  • Excellent cold starting properties, even at low temperatures below -25°C

  • A very stable and excellent viscosity behavior and shear stability

  • Fuel savings under all operating conditions

  • Very good detergent and dispersing properties

  • Neutrality towards sealants

  • Low evaporation, thus low oil consumption

  • Extensive protection against wear, corrosion and foaming

  • Suitable for catalytic converters

  • Extended oil change intervals protect natural resources

Available Size:

20 L
60 L
200 L
1000 L

Quality Classification:


AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, CETOP RP 91H HV, DIN 51524 Teil 3 HVLP, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS1004

Practice and tested in aggregates with filling:

Bosch Rexroth RE 90220, Denison HF-0/HF-1/HF-2,, General Motors LH-02-1-04/LS-2, Sauer-Danfoss 520L0463
